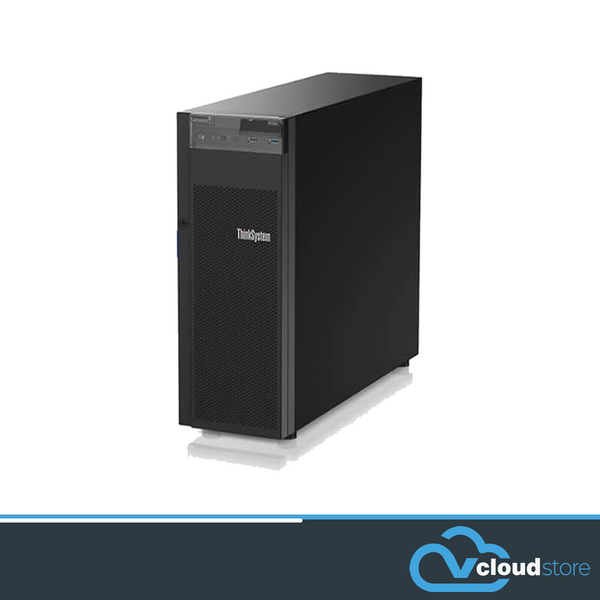

Lenovo ST250 Basic Tower Server

Lenovo ST250 Basic Tower Server

Description:

LENOVO ThinkSystem ST250 4U Tower Server, 1 x Intel Xeon E-2246G, 1 x 16GB RAM, 8 x 2.5" HS HDD Bays , 550w PSU, 3 Year NBD

Includes :

     - 64 GB REGISTERED TruDDR4 2666MHz MEMORY MODULES
     - LENOVO ThinkSystem RAID 530-8i PCIe 12GB Adapter
     - Kingston A400 M.2 SSD 120GB (BOOT DRIVE)
     - SAMSUNG 500GB SSD CACHE DRIVE
     - SAMSUNG 6TB (1TB x 6) SSD DATA REPOSITORY DRIVES
     - LENOVO Intel X550-T2 Dual Port 10GBase-T Adapter

Enterprise capacity

The Thinksystem ST250 harnesses enterprise-level server power with the next-generation Intel^® Xeon^® E-2200 processors, featuring a performance bump of up to 34% generation-to-generation, in tandem with a wide range of storage options and seamless integration with Lenovo’s XClarity management system.

This capable tower server offers streamlined enterprise business applications including office automation, web serving and near-side data backup. Support for Intel Software Guard Extensions (SGX) provides security for application code and data, such as blockchain.

Description	Specifications
Form Factor	4U chassis: Height: 430mm (16.9 inches), Width: 175mm (6.9 inches), Depth: 566mm (22.3 inches) Optional ST250 rack-mount kit
Processors	1x Intel^® Xeon^® E-2200 processors, up to 8 cores at 95W.
Memory	Up to 128GB in 4x DIMM slots using 32GB DIMMs 2666MHz TruDDR4
Expansion Slots	x1 lane PCIe Gen3 in x1 slot; x16 lane PCIe Gen 3 in x16 slot (for GPU); x4 PCIe Gen3 in x4 slot; x4 PCIe Gen3 in x8 slot
Drive Bays	Up to 8x 3.5-inch simple-swap and hot-swap SATA/SAS bays; up to 16x 2.5-inch hot-swap SATA/SAS; 2x 5.25-inch media bay (for optical drive or tape); 1x M.2 support
HBA/RAID Support	Intel VROC Software RAID support; multiple hardware RAID configurations supported
I/O Interface	1x front USB 3.1 G1 port and USB 2.0 port for XCC mobile 2x rear USB 3.1 G2 ports and 2x rear USB 3.1 G1 ports 1x Serial Com port and 1x VGA port
Network Interface	2x 1GbE ports standard; 1x 1GbE dedicated management port
Power	Dual-redundant 80 PLUS power supply unit (PSU) 550W; fixed PSU 250W; power efficiency up to Platinum; Energy Star 2.1 compliant
Systems Management	Lenovo XClarity Controller; TPM 1.2 embedded (optional to TPM 2.0)
Operating Systems	Microsoft, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information. Microsoft Windows Client OS – Win10 tested

Enterprise flexibility

The ThinkSystem ST250 features a highly flexible design that deploys server performance where it's needed and adapts as requirements change over time, including highly expandable storage configurations, GPU support, and multiple PCIe expansion slots.

Lenovo XClarity software provides easy-to-use systems management and dramatically reduces provisioning time, while an array of XClarity integrators allow utilization of XClarity through external IT applications to streamline IT management and contain costs.

Designed for ROBO use

A compact footprint and office-quiet cooling system make the ThinkSystem ST250 ideal for the remote office/ branch office environment.

Critical asset dependability is a result of components that increase server uptime, workplace productivity, and system security including dual-redundant power supplies and lockable front bezels. These are component solutions ideal for an environment without a dedicated on-site IT support system.
